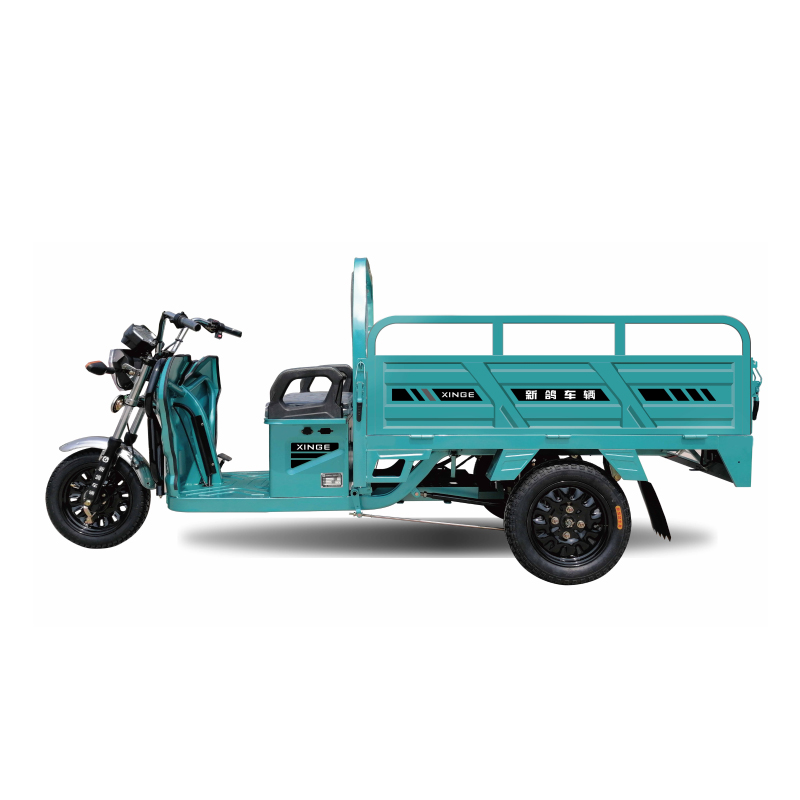

TL150GT Electric Cargo Tricycle

Description

Type of Motor	60V1000W Shift and add force
Controller	48-60V general /1000W/ double row of 18 tubes
Front Wheel/Rear Wheel	3.50-12/3.75-12
Cargo Box Size	*15001100mm four-door Embossed bottom works compartment**
(Front) Shock Absorber	Φ37 External spring damping
Leaf Spring	4 PCS 3.5kgs
Overall Dimension (mm)	*L2955W1160H1335mm*
Wheel Base(mm)	2010mm
Wheel Track(mm)	930mm
Max. Speed	30Km/h
Range	80Km（60V45Ah）
Kerb Weight without battery	200kgs
Loading Capacity	400kgs
Loading in 40HQ	55pcs
